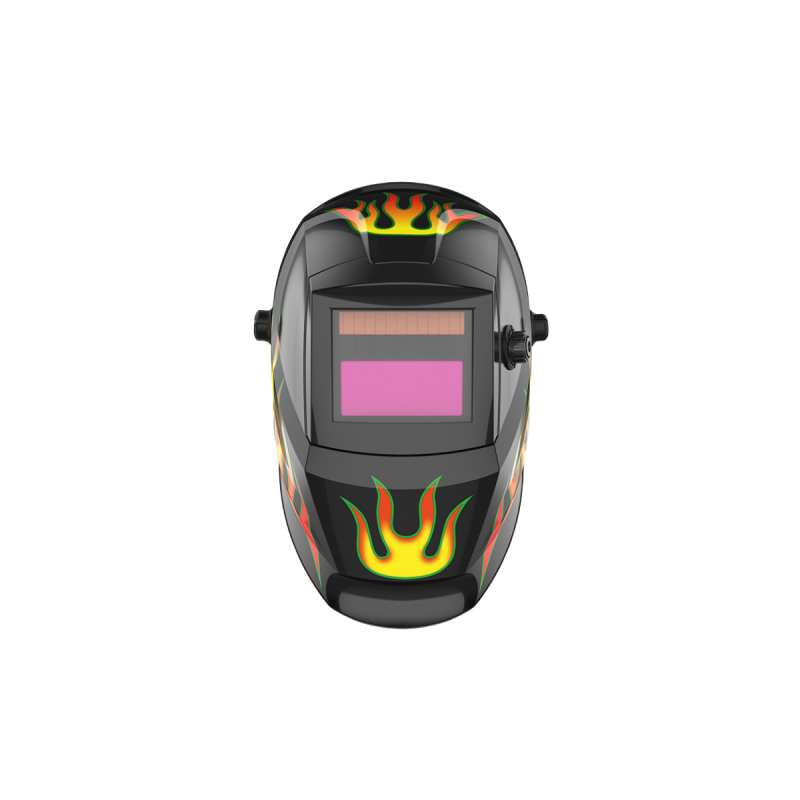

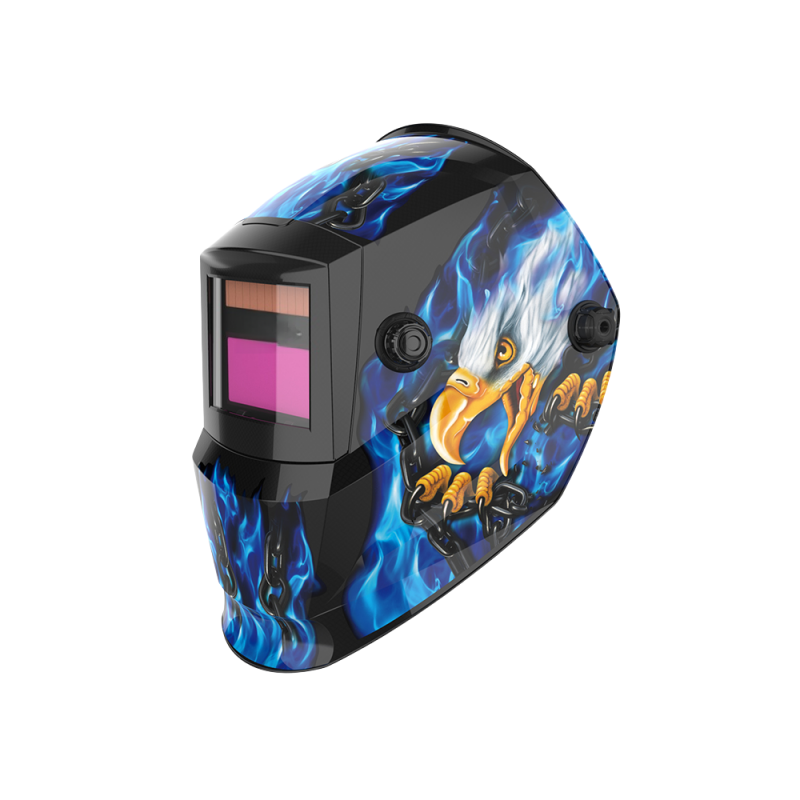

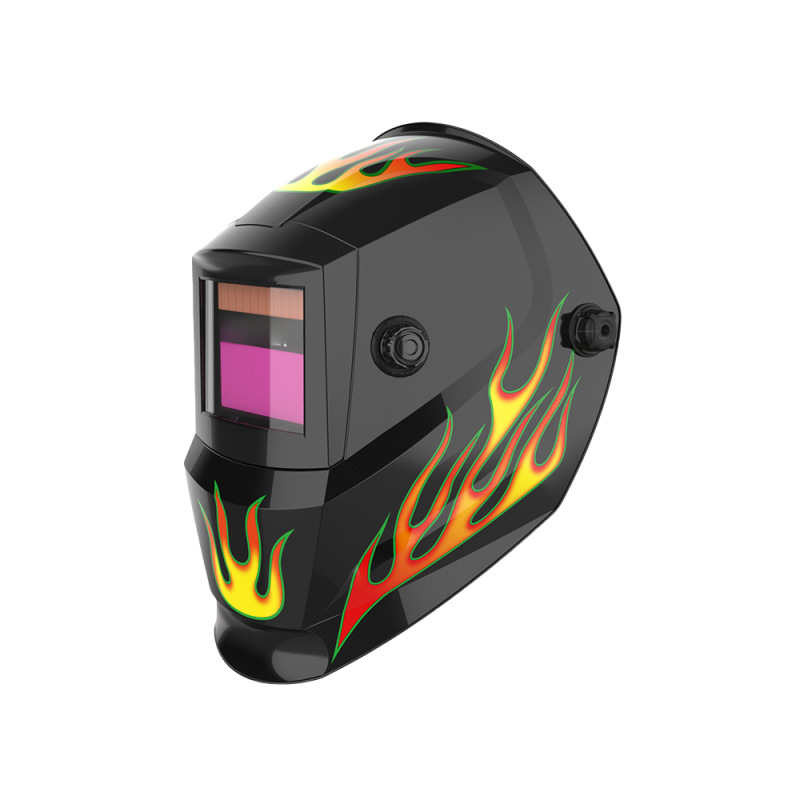

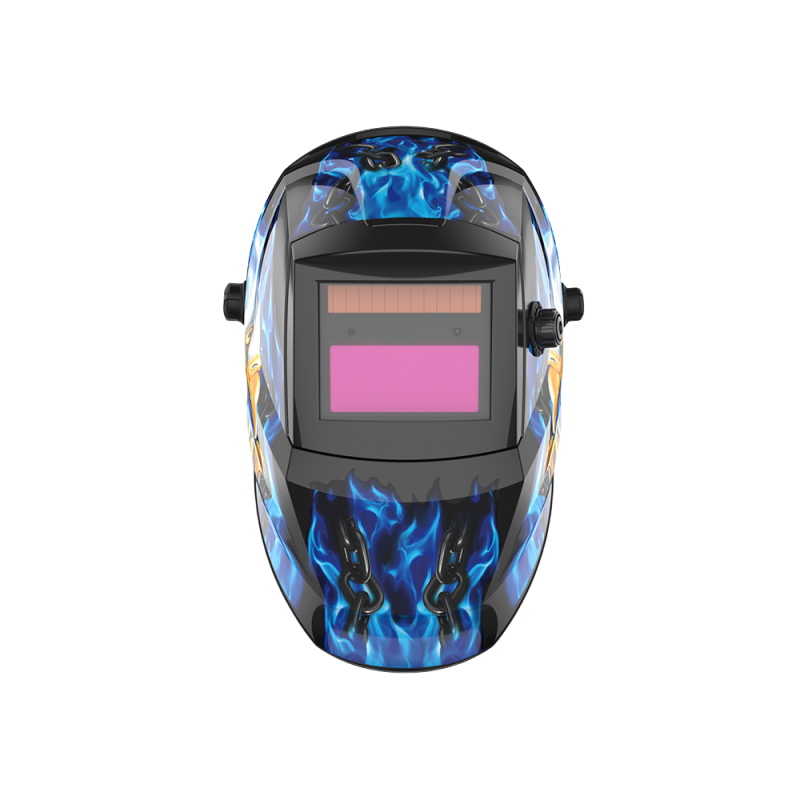

Auto Darkening Welding Helmet

  • Optical Class:1/1/1/2 or 1/1/1/1
  • Viewing Area:92.5×42.5mm(3.64"×1.67")
  • Light State:DIN3.5
  • Dark State:DIN9~13
  • Shade Control:External & Stepless
  • Switching Time:3/10000S±20%
  • Sensitivity Control:Internal & Stepless
  • Delay Time:0.1S~1S
  • Power Supply:Li-battery & Solar
  • Rated Capacity Of Li-Battery:600mAh
  • Operating Temp.:-5℃~55℃
  • Storing Temp.:-20℃~70℃
  • Helmet Material:PA or PP
Hits:  【Print

Product Detail

●External Shade Controll

●Shade / Sensitivity / Delay Time Stepless Adjustmentl

●Popular window size 92.5mm*42.5mm with 2 Premium Sensorsl

●Low Amperage TIG Rated ≥5 amps DC(AC).

Auxilidry WindowSize 209*230mm large auxiliary window, shade 5, match to optics, enhance surrounding vision, safer and securer.

Premium Arc SensorsThis product builds two arc sensors inside, each sensor can work independently and detect welding arcs easily.The arc sensor focuses on the welding arcs without any interference from surroundings.

Comfortable and Lightweight Welding HelmetAdjustable headgear for maximum comfort.High-impact resistance material, lightweight and durable.

Shade/Sensitivity/Delay Time Stepless AdjustmentKnob design with clear interface, you can easily adjust control knob to achieve shade, delay time from 0.1 to 1 seconds, sensitivity from low to high level.

Well-adaptedWith 2 independent sensors, allows users to weld in complex environmen

Application:

MMA, MIG / MAG, TIG, FLUX-CORED
