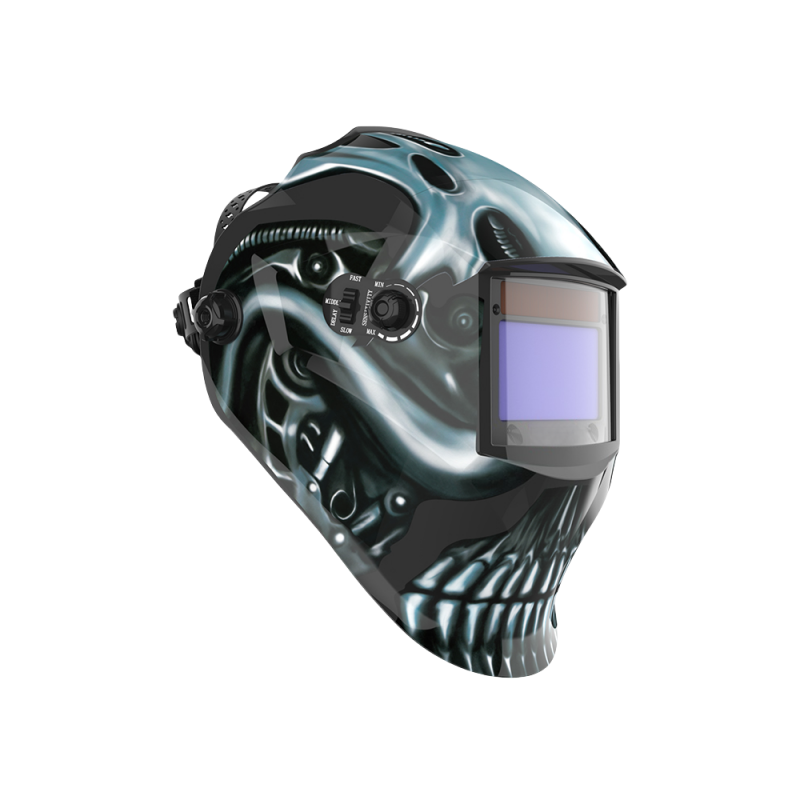

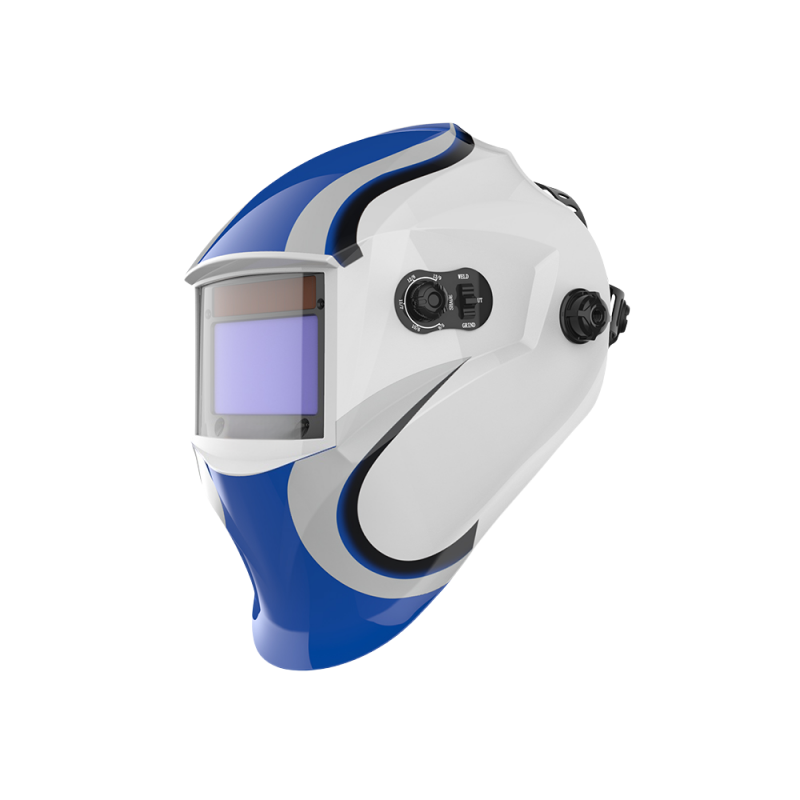

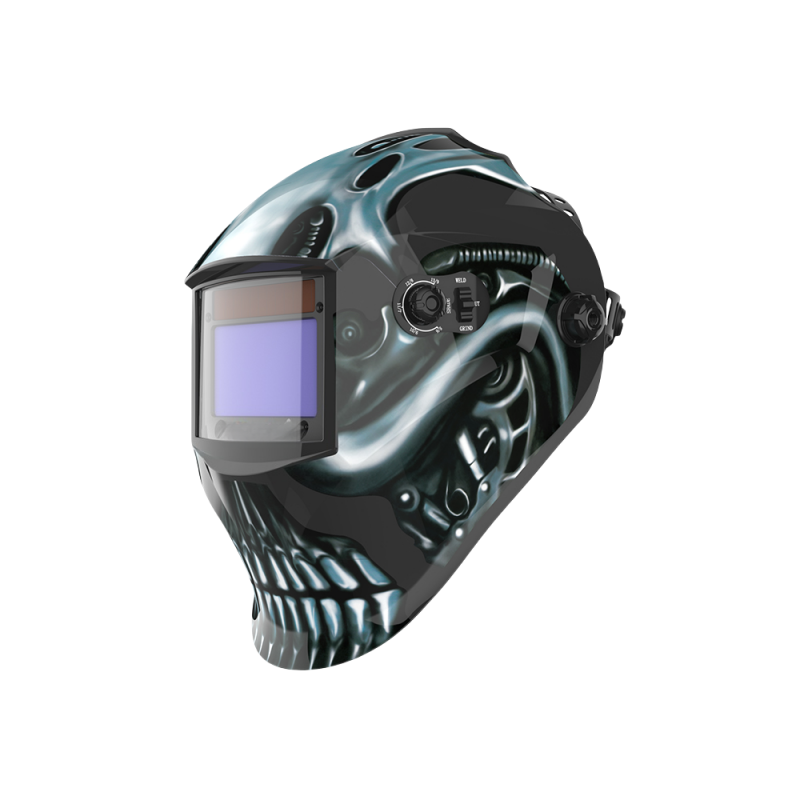

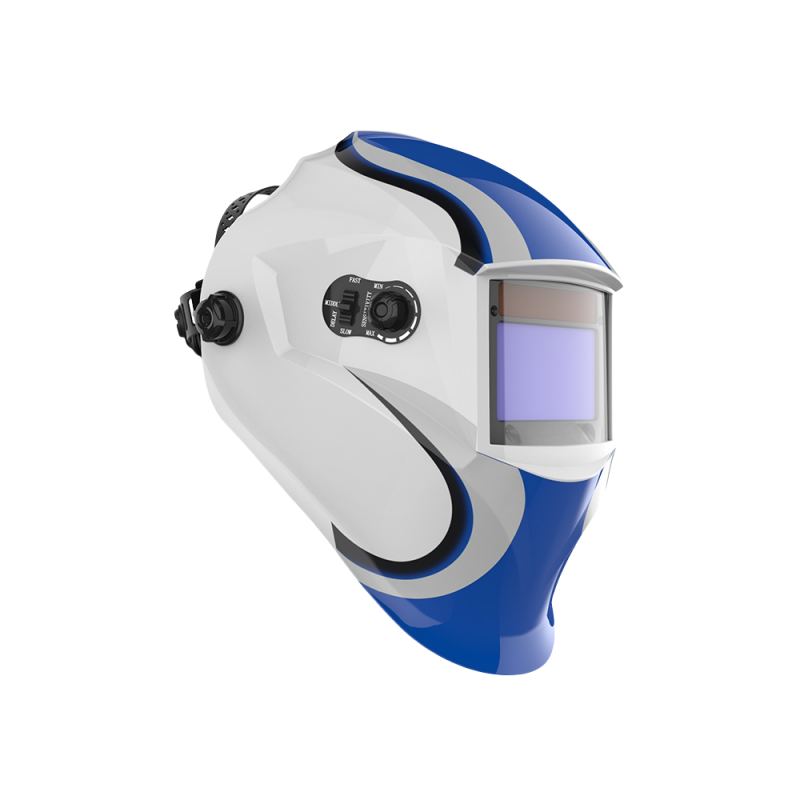

Auto Darkening Welding Helmet

  • Optical Class:1/1/1/2 or 1/1/1/1
  • Viewing Area:98×55mm(3.86"×2.17")
  • Light State:DIN3.5
  • Dark State:DIN5~9/9 ~13
  • Shade Control:External & Stepless
  • Switching Time:1/10000S +_20% or 1/25000S+_20%
  • Sensitivity Control:External & Stepless
  • Delay Time:0.1S / 0.4S / 1S
  • Power Supply:Li-battery & Solar
  • Rated Capacity Of Li-Battery:1200mAh
  • Low Amperage TIG Rated:≥5amps
  • Helmet Material:PA or PP
  • UV/IR Protection:DIN13
Hits:  【Print】

Product Detail

●Large View with 4 Independent Sensors

●1/1/1/1 Highest Optical Class

●High Resolution Lens Technology

●1/25,000 sec. Fast Switching Speed

●Shade Range 5-9/9-13 for More Welding Applications

●Used to switch 3 working modes: WELD/CUT/GRIND

●Premium Arc Sensors:This product builds four arc sensors inside, each sensor can work independently and detect welding arcs easily.The arc sensor focuses on the welding arcs without any interference from surroundings.

●Comfortable and Lightweight Welding Helmet:Adjustable headgear for maximum comfort.High-impact resistance material, lightweight and durable.

●Shade Range 5-9/9-13:For most welding/cutting applications, also including grinding mode.

Highest Optical Class 1/1/1/1:Top quality ADF lens, optical class: 1/1/1/1, which can provide ultra-clear view and best protection for users’ eyes.

●High Resolution Lens Technology:High resolution lens technology brings high-definition visual experience, increases eyes comfort, and reduces fatigue greatly, especially for long time welding job in Industrial field.

●Application:

MMA, MIG / MAG, TIG,FLUX-CORED,PLASMA,GRIND
