1. Material: Plate, frame SS304

2. Function: Spray + eyewash (can be used simultaneously or separately)

3. Installation features: Double-layer thickened stainless steel plate, built-in 5cm thick glass wool

4. Features of glass wool: fire-resistant, flame-retardant, heat-insulating, heat-insulating and cold-proof

5. Observation window: Double-layer tempered glass, size 50cmx50cm, vacuumed.

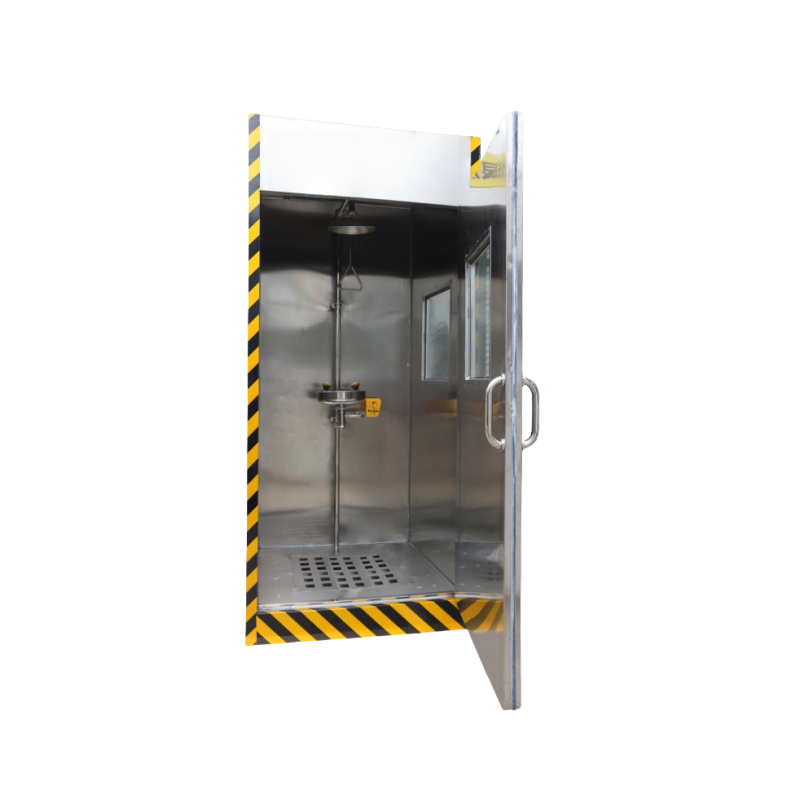

6. Eyewash room size: length x width x height = 110cmx110cmx240cm

7. Switch ball valve: two-piece quick-opening ball valve

8. Eyewash basin: 300mm straight edge design, water collection and concentration to prevent splashing.

9. Nominal pressure: 1.0Mpa

10. Working pressure: 0.2~0.4Mpa

11. Test pressure: 1.5Mpa

12. Spray water flow: ≥ 76 L/min

13. Eyewash/facewash water flow: > 11.4 /min

14. Water inlet size: 1" British internal thread

15. Drain size: 1-1/4" British external thread

16. Dust cover: The main body is integrated and not easy to lose

17. Features of eyewash nozzle: Patented design, with dual flow regulating valve

18. Applicable places: Widely used in dust-free workshops, petroleum, chemical, pharmaceutical, fire protection, electricity and ports.

19. Product features:

① A water collection tank is set in the eyewash room.

② The eyewash pipeline is equipped with a seepage hole to drain the residual water in the eyewash nozzle, which is conducive to the cleanliness and antifreeze of the pipeline (part of the water is discharged into the sewer from this hole during eyewashing, which does not affect the use effect).

③ The installation position of the shower room inlet and drain hole has reserved space for the winding installation of the electric heating cable to achieve the insulation of the pipeline, which can meet the use in cold areas

20. The size and specifications of the eyewash room can be customized according to the site requirements. The size of the inlet and drain port can be customized according to the user's needs. It is recommended to set the maintenance emergency valve and filter at the water inlet.
