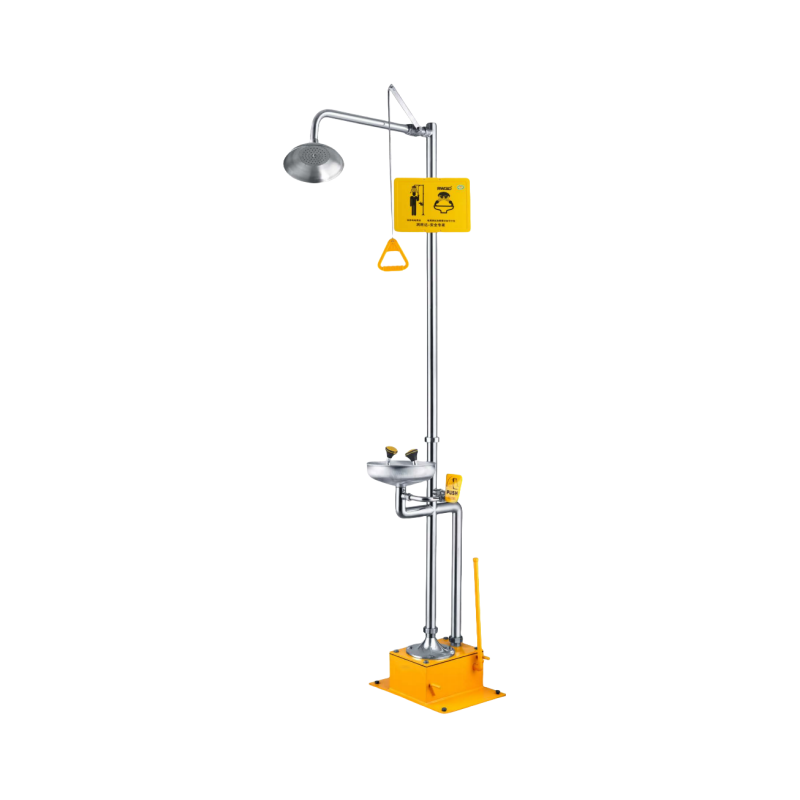

1. Material: SS304

2. Surface treatment: fine polishing + high-brightness epoxy resin coating

3. Installation features: adopts "Yun-style" pipe connection method, which can be quickly assembled and disassembled

4. Function: spray + eye wash + manual emptying

5. Suitable areas: low-cold areas in the north

6. Switch ball valve: two-piece quick-opening ball valve + special three-way ball valve

7. Shower nozzle: spinning curling process design, diameter 250mm

8. Pipeline diameter: 48mm

9. Eye wash basin: 300mm Straight edge design, water collection and splash prevention

10. Dust cover: integrated design of the main body, not easy to lose

11. Features of eyewash nozzle: patented design, with dual flow regulating valve

12. Water inlet size: 1" British internal thread

13. Drain size: 1" British external thread

14. Water inlet height: 110mm

15. Drain height: 50mm

16. Eyewash nozzle spacing: 170mm

17. Water outlet range: 1520mm height from the standing surface, the water outlet range diameter is at least 510mm

18. The size of the inlet and drain can be customized according to user needs. It is recommended to set up maintenance emergency valves and filters at the water inlet.
