1. Inner material: SSS304

2. Outer material: ABS removable shell

3. Installation features: It has the function of heat preservation and antifreeze, equipped with self-limiting temperature electric heating belt and temperature control system

4. Function: spray + eye wash (can be used at the same time or separately)

5. Explosion-proof level: Ex dbIIBT4/Ex dbIIBT6/Ex dbIICT4/ExdbIICT6 (can be customized according to customer requirements)

6. Protection level: IP65/IP66 (can be customized)

7. Switch ball valve: conventional two-piece ball valve (three-piece ball valve can be customized)

8. Eye wash basin: 300mm straight edge design, water collection and concentration

9. Nominal pressure: 1.0Mpa

10. Working pressure: 0.2~0.4Mpa

11. Test pressure: 1.5Mpa

12. Spray water flow: ≥ 76L/MIN

13. Face/eye wash water flow: > 11.4 L/MIN

14. Water inlet size: 1" British internal thread/1" British external thread

15. Drain size: 1" British external thread

16. Water inlet height: 1230mm

17. Drain height: 100mm

18. It is recommended to set maintenance emergency valves and filters at the inlet and outlet. The protection level can be customized according to the on-site use environment. Sound and light alarms, explosion-proof lighting, and pedal devices are optional

19. Product features

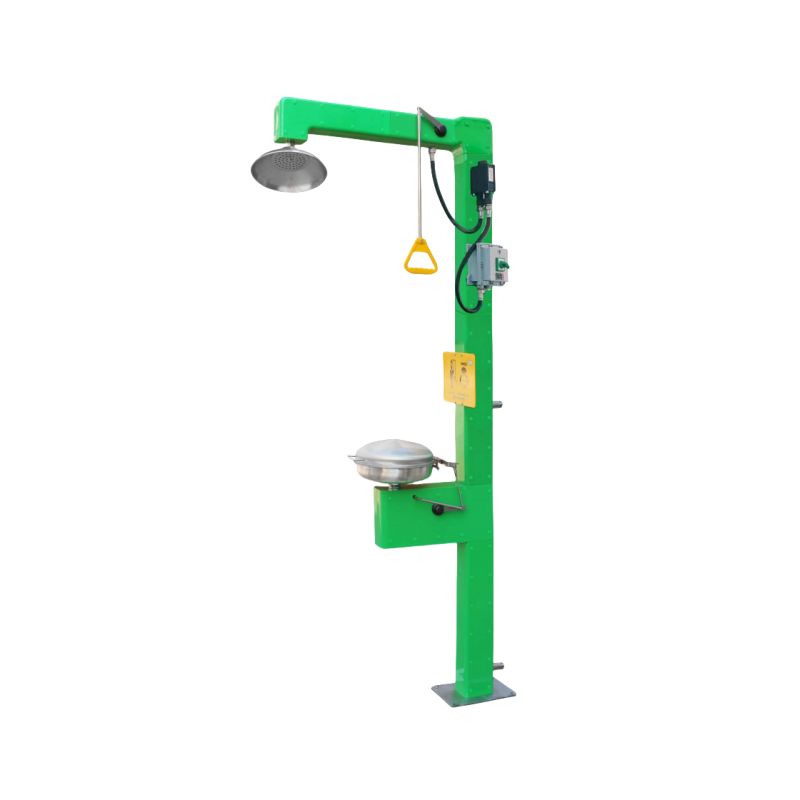

① Electric heating composite shower eyewash, designed for cold weather in the north.

② Once a user starts the eyewash, the sound and light alarm will start working, which can not only inform others that someone is operating here, but also achieve the purpose of requesting assistance.

③ The used water will be directly discharged from the internal leaking pipe of the basin, which will not pollute the use space and is simple and convenient.
